KeesScherer replied to the topic Calibration frames with different ISO settings, how to process? in the forum Astro Pixel Processor Beta 9 years, 2 months ago
What would need to be “overridden” in your opinion?
Nothing apparently, i forgot that i need to add iso200 Bias frames in addition to the iso1600 bias frames…… (A warning would help though as maybe i am not the only user who forgets about this)
-
Haverkamp replied to the topic Calibration frames with different ISO settings, how to process? in the forum Astro Pixel Processor Beta 9 years, 2 months ago
To add:
You can then save your calibrated rgb frames and split them directly in the r,g,b channels as an option in “save calibrated files” for further combination with your monochrome data of your new camera.
-
Hi @keesscherer,
This is perfectly possible in APP with your data.
(I calibrate, all my own data with flats of different iso or gain compared to the iso/gain of the light frames )
Since you indicate that you still have the light frames and flat frames, you only need to make sure that the bias pedestal is removed from both light and flat frames…[Read more]
-
Van Kleef replied to the topic NGC 7023, 2017-04 Frankrijk – Grandpre in the forum Deepsky 9 years, 2 months ago
@keesscherer De SQM waarde liep op tot zo’n 21.9. De in het waarneemverslag op AF genoemde 22.32 moet je met een korreltje zout nemen. Deze waarde is tijdens een volledig bewolkte hemel gemeten.
Alle bewerkingen zijn in Pixinsight gedaan.
@supernov De Iris nevel is inderdaad lastig te bewerken. Ik heb hem eerder vanuit het minder donkere…[Read more]
-
KeesScherer replied to the topic Calibration frames with different ISO settings, how to process? in the forum Astro Pixel Processor Beta 9 years, 2 months ago
Now back to the practical side, i have many objects imaged with the Canon 6Da in my archive and want to combine those RGB’s with new Luminance data. So i have years of iso1600 RGB data with corresponding iso200 flat frames. But there is no way that i can (re)stack this data with APP because the flat calibration is not done for these datasets. So i…[Read more]
-
Groenewold posted an update 9 years, 2 months ago · updated 9 years, 2 months ago
Vraag; sidereal-rate van een montering, ongeveer 15 arcseconds per seconde… houdt dit in dat 1 hele ronde van een worm-wiel, 24 uur is?
-
Groenewold posted an update 9 years, 2 months ago · updated 9 years, 2 months ago

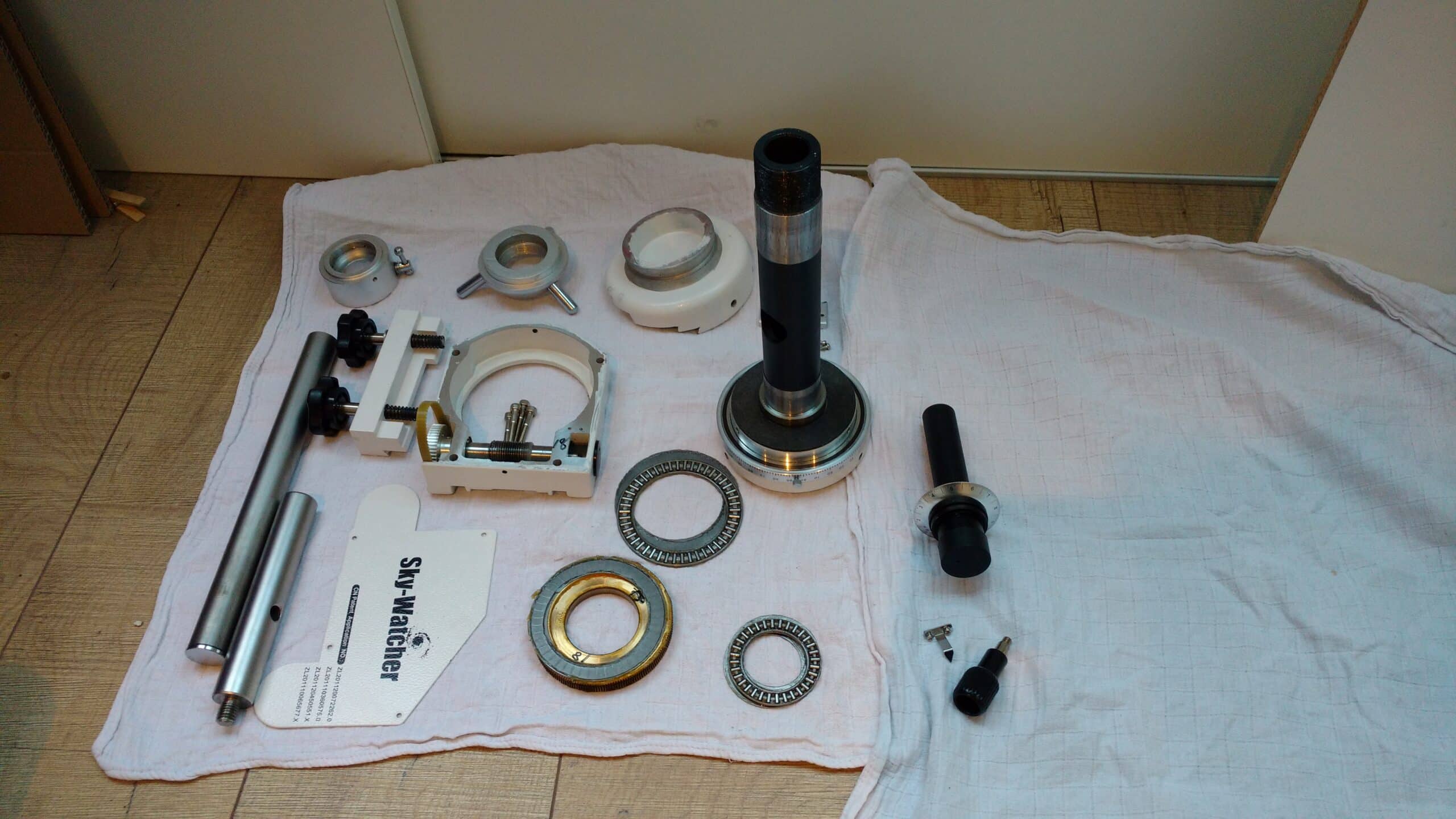

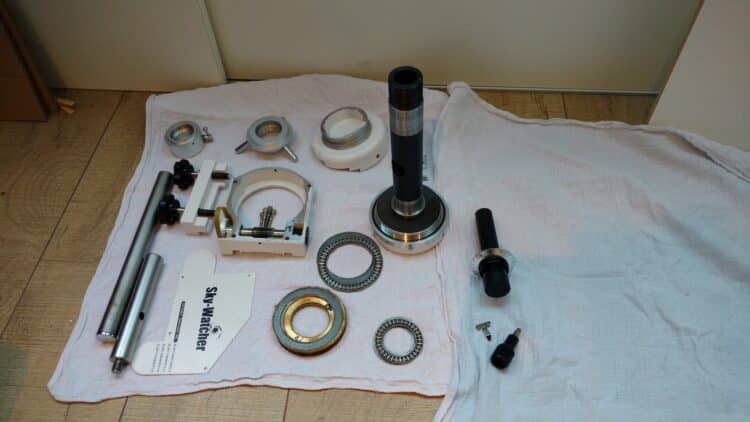

* slik * wat doe ik mijzelf aan IMG_20170427_202109425
- 5 people like this.
-
Gelukt! Alles werkt nog, wel 2 volle dagen aan gewerkt. Nu de backlash doen morgen en dan kijken of jullie nog foto’s van me kunnen verwachten. :)
-
Backlash net als laatste gedaan, ik ben duidelijk een ingenieur ik geniet van dit gepruts. ;) De DEC backlash was JUGE, was me al eens eerder opgevallen in de backlash grafiek van PHD, maar nooit aan begonnen verder. Die is nu net als de RA tot een minimum beperkt (niet 0, want dan heb je risico op vastlopers). Het nieuwe “vet” zal waarschijnlijk…[Read more]
-

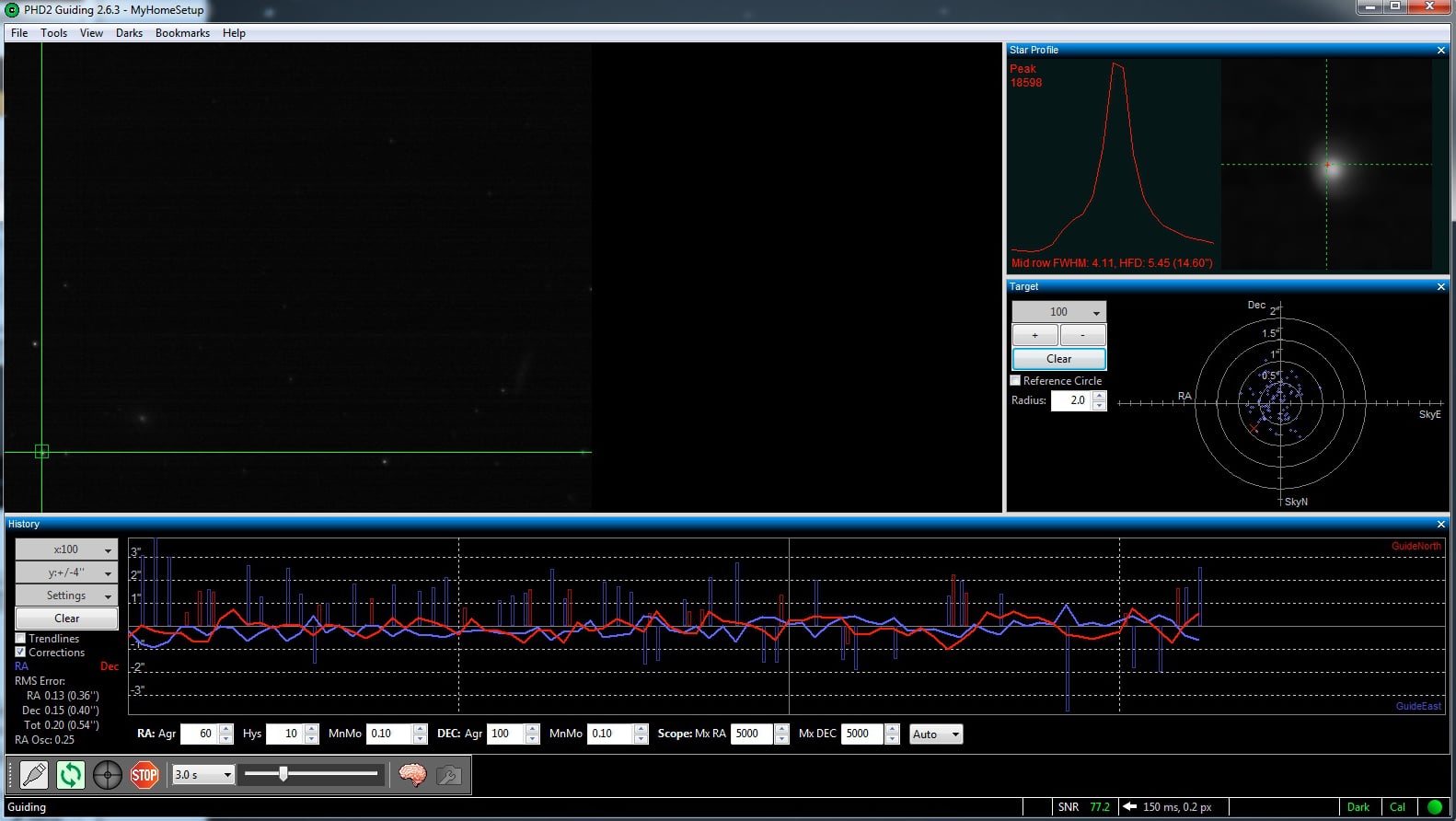

OH YEAH BABY! Bijna perfecte backlash aldus PHD en super rustige guiding nabij de meridiaan, erg lastige positie altijd. Geen gekke uitschieters ook. Damn dit is goed gegaan allemaal zeg. YES
-
De discussie inzake prijsstelling (misschien vraag je je af, waar bemoeit men zich mee?) is al eerder geweest. Ik hoop in ieder geval dat je de markt (en hiermee bedoel ik je potentiële klanten) gepolst hebt, gepeild en verkend hebt.
Niet alleen heeft @skysurfer gelijk in zijn stelling dat een te hoge prijs afschrikt en van de andere kant cracks…[Read more]
-
@skysurfer, ik kan je zeker volgen in je argumentatie.
Ik kan enkel aangeven dat ik, met heel veel plezier, enorm veel arbeid in APP heb gestoken en nog steeds doe, met als doel een programma te maken waar andere fotografen veel plezier aan zullen beleven en dat ze goed helpt om het maximale uit hun data te halen ;-)
-
Haverkamp replied to the topic BUG sub directory loading ? in the forum Astro Pixel Processor Beta 9 years, 2 months ago
Great, let me know if it fails again though ;-)
-
Musquetier replied to the topic BUG sub directory loading ? in the forum Astro Pixel Processor Beta 9 years, 2 months ago
It seems to work now (with version 1.036.0)!
-
Hi @musquetier,
“BUG: when loading files from a sub-directory in the selected work directory the sub-directory is not remembered in the filelist resulting files not being able to load.” (Rob)
I have checked this, but on my systems (windows, Mac & Linux) this always works correctly.
Internally, the file lokations of all frames are stored with…[Read more]
-
Slingerland posted an update 9 years, 2 months ago · updated 9 years, 2 months ago
Aanbod voor PixInsight kenners/enthousiastelingen:
Door de slechte zichtkwaliteiten in de Randstad (< 20 km van Rotterdam) ben ik abonnee van iTelescope en kan daar veel materiaal verzamelen dat ik gekalibreerd download in LRGB of SHOL. Ik wil dit materiaal delen met iemand die er het beste resultaat in PI uithaalt en mij zijn bewerking als PI…[Read more]-
Heb je al eens naar APP gekeken? Dit zou een uitkomst kunnen zijn:
-
Bedankt voor de tip – is er een duidelijke handleiding bij?
Maar er is wellicht toch iemand die met PI mijn data wil krijgen en bewerken?
-
@ariesl Daar werkt Mabula hard aan, maar dit is een aardig stukje om je op weg te helpen:
Astro Pixel Processor – Calibration, integration and post-processing
-
-
Haverkamp replied to the topic Interpretation of Rejection maps in the forum Astro Pixel Processor Beta 9 years, 2 months ago
Indeed, since this is a masterdark, you are totally right ;-)
-
KeesScherer replied to the topic Interpretation of Rejection maps in the forum Astro Pixel Processor Beta 9 years, 2 months ago
Regarding the statistics and rejection of them: The outlier rejection works a little bit differently.
Yes of course, but i will not do the calculation for the 65 frame stack by hand. The statistics for all the frames do not differ much from this “back of the envelope calculation”. The APP statistics for this master dark show a standard deviation…[Read more]
-
Het is denk ik niet de bedoeling om hier te gaan opschrijven hoe ik APP’s beveiliging precies kan en ga doen natuurlijk 😉 maar bedankt voor de optie @skysurfer.
Nee natuurlijk moet je dat niet doen.
Maar wat ook meespeelt bij de motivatie tot kraken van commerciele software, is de prijs. Een te hoge prijs zet ook aan tot eerder kraken. Adobe h…[Read more]
-
Excellent @keesscherer,
You captured quite a few of those cosmic rays ;-)
Regarding the statistics and rejection of them:
The outlier rejection works a little bit differently. An outlier rejection filter while integrating several frames, is a filter the determines the central value (average/median for example) of a pixel stack. So all pixels of…[Read more]
-
KeesScherer replied to the topic Interpretation of Rejection maps in the forum Astro Pixel Processor Beta 9 years, 2 months ago

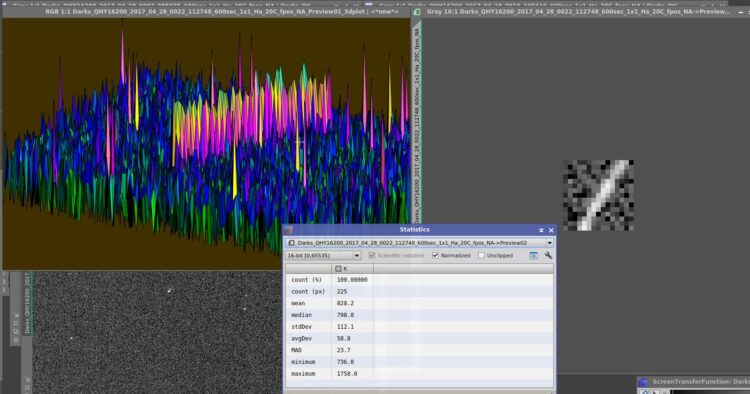

And some statistics, the cosmic ray has 1758 ADU, average=828 and sdev=112, so 828+3×112=1164. The 1758 gets rejected alright……Dark-cosmic-rays stats
-
KeesScherer replied to the topic Interpretation of Rejection maps in the forum Astro Pixel Processor Beta 9 years, 2 months ago

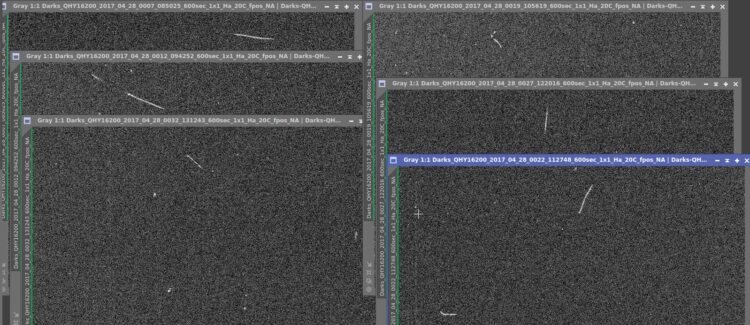

No problem! Just some examples:Dark-cosmic-rays
-
Haverkamp replied to the topic Interpretation of Rejection maps in the forum Astro Pixel Processor Beta 9 years, 2 months ago
Interesting to see 😉
65 darks of 600 seconds integrated (average) and Winsorized sigma clip (WSC) 1 iteration kappa 3.
I suppose these could and should be cosminc rays indeed, they should be visible on some of the individual subs then. Interesting to see how bright they are in the frames that were hit.
Can you find a frame with such a streak?
