En dank je wel :-) … ik ga het op poten zetten :-) .

Heb je geen tijd meer voor Marc, je wordt veel te snel oud vanaf nu dus kopen die hap! :)

@whwang,

Great, the screenshot gives a lot of usefull information.

First, I see your machine has 16GB of RAM, and APP can only use 2GB at the moment.

If you click on CFG (top left) you can alter the amount of RAM APP can use. For your mosaic, I recommend to increase this to at least 12-14GB. Leave some GBs of RAM for your OS available to…[Read more]

Het is prettig vertoeven, als ik nu toch alleen direct voor de 3M had gekozen :-) … soms moeten dit soort zaken even rijpen.

Wauw, dat ziet er erg goed uit Marc. Damn wat een mooie lokatie hebben jullie toch.

Hi @mauricetoet,

I would recommend for the mosaic registration to use:

4) Register

use “dynamic distortion correction”

disable “same camera and optics” (the panels were created by APP, so APP is the camera now, and this camera normally is slightly different for all panels)

mosaic mode

( 5) normalize, you can experiment with advanced…[Read more]

This is the full screenshot when that error happened.  The composition mode is indeed set to full.  And yes, the mosaic is larger than 120 deg.  It’s a 360-deg pano of the Milky Way.

Wij zijn eruit @vr0763, het wordt de Scopedome 3M, ik zie overigens dat deze uit componenten bestaat, dit wil zeggen dat ik wel degelijk achterom kom :-) …

I’m experimenting to get a properly aligned (registered) mosaic in APP version 1.037. Still some minor flaws, though. Maybe they’re caused by edge of field distortions (coma, miscollimation).

@bula: what settings do you recommend under 4) register & 6) integrate?

Technical details:
6 pane mosaic with Tak Epsilon-180ED, Atik 11000. Data acquired…[Read more]

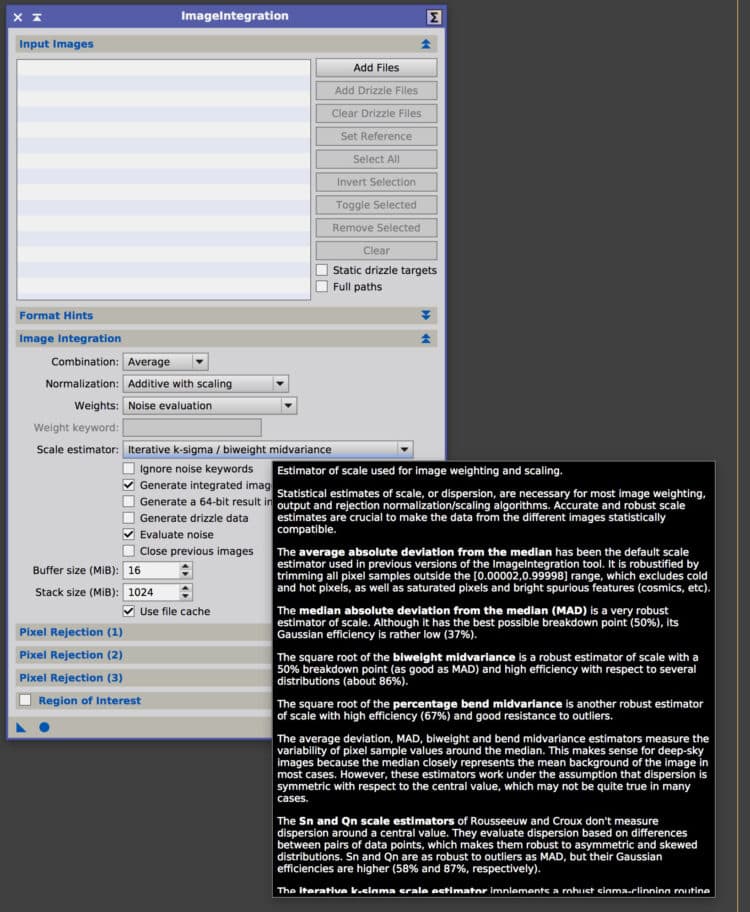

Excellent suggestion @mth75, i”ll work on the tooltips while working on the quick start guide and manual 😉 I’ll add this to the RFC list at the top.

(I have moved the warning system about possibly wrong, sub optimal calibration also to the top of the RFC list)

@whwang,

Another question that pops up, is the field of view of your data larger than 120 degrees?

Een voortgangsberichtje … geen progressie en de deadline (iets wat niet mijn stijl is), niet gehaald 🙂 .

Door verdere vertraging met de 2de verbouwing, is het (nog) niet mogelijk om achterom te komen met een Scopedome.

Echter ben ik onlangs op de koffie geweest (zonder koffie nu ik er aan terugdenk 🙂 ) bij Wim Engels. Wim had een al…[Read more]

@whwang,

Possibly the error is the result of the 6) Integrate, composition setting. Did you leave it at “reference”?

If so, try the integration with the “full” composition mode. Don’t forget to push the apply mode button.

I should let APP use FULL composition by default when the mosaic mode is used in registration, so I’ll add this to my RFC…[Read more]

Hi Wei-Hao (@whwang),

Thank you for sharing this bug.

I suspect something went wrong in the registration of the mosaic. It would be most helpfull if you can share a screenshot showing the file list panel (bottom panel) which shows all analytical results after 5) normalize.

I would be most interested to see the registration RMS values per panel…[Read more]
